Completion

The kitchen has been completed now for a few weeks apart from a few minor snagging items to sort out. The final result is shown below. Whilst we are reasonably pleased with the kitchen, I'm not sure is you would class Wren at the 'top of the league' as far as quality is concerned. You can view previous blogs for qualification of that. Whilst the showroom displays and the design service are very good, the main problem we encountered was the result of careless handling at the factory and the less than ideal fitting and adjustment of mechanical items at the factory.

Whether this kitchen was 'value for money' is debatable since along with other kitchen sellers, Wren uses 'discounts' as an on-going marketing ploy to confuse customers so you will never know the real prices for comparison purposes.

We shall see how the kitchen stands up to normal use over the next few years, it is an Infinity Plus product so has a 25 year warranty/guarantee. Wren state that they 'raised the bar' with the introduction of the Infinity bespoke product range in 2016, certainly there is a  very wide choice of units, appliances and colour schemes. The 25 year warranty actually only applies to carcasses, it does not apply to worktops or fair wear and tear or colour deterioration. Not much chance of a successful claim then after a few years.

Lack of Attention to Detail

Wren cupboard doors appear to be per-drilled for either LH or RH opening, in other words hinges go on the appropriate side and 2mm thick plastic covers fit into the redundant holes on the opposite side. Now that is OK if you have a cupboard with double doors for example but not so with a single cupboard as the white cover does not allow the door to sit flush against the carcass. This is annoyingly obvious if the cupboard is LH opening next to a drawer unit on the RHS  as the door and drawers don't sit flush. As it happens, out of 15 cupboard doors on our units, 14 doors are pre-drilled for either hand operation but one door on an appliance tower is only drilled one side so that one closes flush........so it can be done properly when they feel like it.


Secondly you will find that fillers and end panels you have chosen will have your colour/finish on one side and both edges but the other side is just plain matt white. This means the white reverse can be seen at plinth recesses and all end panels if they are not positioned flush up against a wall.

Plinth Lights and Tiles

Wall tiles have been cemented in place but the ones we found that we liked and were suitable were fairly thick, 10mm or so which meant we had to use special edging to ensure the tiles looked right. The edging is brushed stainless steel, quite difficult to cut smoothly and mitre the corners but with practice and a bit of care. Grouting yet to do.

To add a bit of bling, we installed some plinth lights for effect. The best value ones we discovered were form National Lighting. However, because the Wren plinths are made of the lowest possible grade of material, the holes had to be cut very carefully to avoid the MDF shredding. Also, because the MDF is rubbish quality, the plinths will warp in use if you are not careful. The plastic clips that Wren provide to clip onto the legs are so flimsy as to be useless for holding anything in place.

Fitting the Plinths

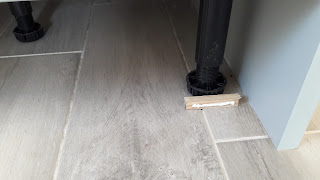

Unless you are very observant or have fitted Wren plinths before, you will not be aware that the orientation of the legs at the front of the units is quite critical. The wren fitting instructions give no guidance on this, see photos. The problem is the top flange, which is about three quarters of the circumference, is approx 8mm greater in diameter than the remaining quarter but it is this smaller diameter that has to face the front of the unit because it is this diameter that matches the diameter of the foot and against which the plinth rests top and bottom. Now, like me, if you only discover this once all the cabinets are in place and bolted together with the worktops, you have a problem if you want the plinths to be vertical. I solved this by gluing a piece of 8mm moulding to the plinth at the front area to compensate. The clips holding the plinth in place cope OK with this dimensional differential. the other problem is that these plinths are often a bit bent when delivered so they won't stay in place. This can be overcome using a plinth lock where necessary.

Base Unit Leg Position Issue
We have a narrow 150mm wide base unit (870 x 150 x 570 Infinity Plus) in which the support legs are 10mm or so further forward than all the other units and is something I didn't notice nor expect when fitting these base units. This naturally makes fitting the plinth a bit problematical. The holes in the base for the support pillars were obviously not drilled in the correct place or the base panel was fitted the wrong way round at Wren. I sent Wren Customer Services photos and asked their advice on how to deal with this problem. Replacing the base units was really not an option as it was installed and fixed in place with the other units and worktop.
The first reply I got from Wren was "this looks like a fitting error as the fitter should know not to fit the legs so far forward. Do you have images to prove the holes were drilled incorrectly as without this we have no evidence of the error"

Clearly a silly reply since I had already sent the images so I responded "regarding your reply to the problem I discovered with the 150mm base unit, your reply says the fitter has put the legs in the wrong place. Could you look at the attached photos (re-sent) and tell me how this is possible. The legs are fitted in the pre-drilled factory holes. If you look at both photos you will see that the rear legs are 10mm too far forward as well.....but that's not a problem per se. My guess is that the base panel on the unit was fitted back to front...ie a factory error. The facts support that so you might as well admit it. I'm not looking for a replacement unit since it is all assembled and would be a majot operation to refit. However, what I had hoped for was some guidance on how to deal with the problem when fitting the plinth since you will have met this before so don't try and blame it on someone else again."

The reply I then got from Customer Services was "I have spoken with the Planning Team  for more guidance on the issue with the legs and plinth. They have advised the only way around this is to scollop the plinth at the back, so cut it to enable it to fit to the legs, your fitter will know what they mean by this. Hopefully that should solve the issue faced”.

So it would seem that there is a manufacturing error with this narrow unit so I routed out the plinth to suit…well done Wren, got there in the end.

The Real World

When visiting a Wren showroom, all the displays look very impressive and well assembled. However, remember that in the showroom the floors are flat and the walls are perfectly square  In the real world in a kitchen the wall are not true and the floor is probably not perfectly flat. So when assembling the units, remember that the carcasses are not rigid and will distort very easily to conform to floor and wall irregularities. So you need to be very careful and allow for these misalignment to ensure the units are true and square, otherwise doors and built-in appliances will not fit properly.

Careless Handling

Having more or less completed the kitchen build, the one thing that has been apparent all the way along is the number of dents and 'paint' chips I have encountered on the doors, end panels and in-fill strips. This is not a delivery issue since the units are very well packaged and there is no evidence of any damage on the packaging. Therefore the problem must be at the factory, they are not taking care of the finished items prior to packaging. Having said that, Customer Services were quite quick in arranging replacement items. In a lot of cases such as the end panels and fill-in items, I was able to get around the damage if I spotted it beforehand but the really annoying dent was in one of the worktop edges which was not obvious until it was fitted. We are going currently living with that but not happy about it.
Several years ago we ordered a kitchen from Schreiber at MFI. This had no dents or issues at all, the units were very well built.......seems like we have gone backwards with quality. Maybe the Wren Quality Control Department (if they have one that is ) should sharpen up a bit.

Sink and Tap

Because we have unbalanced hot and cold water supply pressures we ordered a low pressure tap from Wren, specifically informing our designer that we did not want a ceramic disc type. However, their Phoebe tap was the only low pressure one they had but when it turned up, guess what, it was a quarter turn ceramic disc type instead of the multi-tun cartridge type you would normally expect. It's not perfect, there is vertually no flow adjustment and it dribbles for ages after the tap is turned off.

The sink is another matter, hard as hell. I bought a new 34mm hole cutter for the tap hole and the sink virtually removed all the cutting teeth after only going through 6mm of sink thickness. There was some smoke towards the end but we got through.

Worktops

My biggest concern about fitting my own kitchen was dealing with the worktop jointing since this would be the first time I had attempted this.. As it happens it went really well and the joints are very neat. I chose a 10mm offset for routing the ends and with a Makita router the job proved very straightforward. However, it is very important to research the technique and obey basis rules. We chose Galaxy Night Gloss laminate but there is some directionality in the 'pattern' which does show up the joints under some lighting conditions.

Shelf

As part of the kitchen package we purchased a separate shelf. When it was delivered it had Howdens name all over the packaging. It is not unusual for inter-company trading so it would be interesting to know the extent of the business link. the reason why I say this is that Wren Kitchens take a lot of flack on-line about the quality and workmanship of their units and Howdens are supposed to be star quality. However take a look at the end of the Howdens shelf.....not so brilliant is it?

Corner Units

We have a 'U' shaped end to our kitchen so we purchased 2 'magic' corner units which came with their own corner posts that had to be constructed and fitted. I was bit apprehensive about fitting the corner post having seen the instructions in the general Wren installation guide. However, to my surprise the corner post were both supplied correctly cut to size and the units fitted perfectly into the allotted space. These 'magic' corner units come with a lot of pre-fitted metalwork and are very heavy. The standard Wren method to fix the legs on is to turn the cabinet upside down but this is somewhat impossible because of the weight so my method was to jack up the cabinets and work from underneath to fix the legs on.
